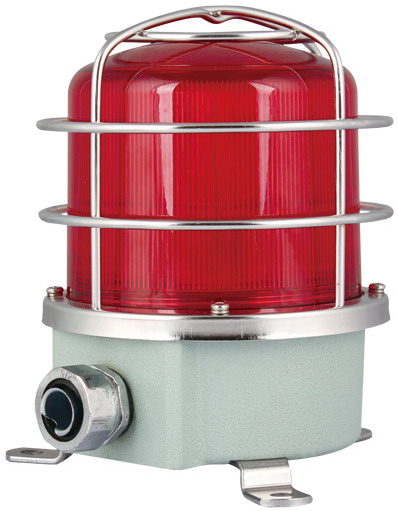

TLH1L-P marine signal light heavy-duty industrial warning lights warning light Strobe

Die-cast aluminum alloy casing / durable

LED bright LED SERIES-125mm

Product Features

1.Rugged and durable industrial, heavy duty, marine products warning

2.Using the latest technologies in the mirror to make the light more diffuse reflection principle, more uniform light independent design, high brightness LED Steady / Flashing warning lights, lights

3.Die-cast aluminum base, sturdy and durable corrosion-resistant waterproof

4.Product internal circuit boards fitted with lighting mode selection switch, the user can choose according to the site needs a long bright, shiny, detailed selection table manner

5.Stainless steel protective net can be installed according to user needs, the installation of the junction box

6.Suitable for all kinds of crane, driving, cranes, transport equipment, ports, shipbuilding, machinery, marine industry, steel industry site, petrochemical industry, outdoor equipment, production lines, machine tools and other industrial signal for warning

7.Lens color: yellow -Y  red-R green-G blue -B

8.Shiny times : 60~80/mim

9.Base standard colors:MUNSELL NO.7.5BG7/2

10.Material: Lens -PC, body - die-cast aluminum DIECAST Al, stainless steel grille -SUS316L, mirror - heat-resistant ABS

11. Volume: (built-in buzzer when):90dB        (32 built-in tone):110dB

12.保护等级 : IP56

13.This product according to customer demand the installation of safety net, standard product does not contain protection network

14.Pictures of the installation of metal products Marine waterproof connector. Ship-specific products to be customized stuffing

15.Particular requirements for remote control, light control, voice control, infrared control, with rechargeable batteries, and other users can request custom

Product Specifications

model

Built-in sound

Voltage

Electric current

weight

Shiny times

Colour

TLH1L

Intermittent beep/80-90DB

DC12V

 0.037A

1.19Kg

60-80Per/Min

RED-R

DC24V

 0.029A

YELLOW-A

Continuous beep/80-90DB

AC110V

 0.011A

1.41Kg

GREEN-G

AC220V

0.009A

BLUE-B

Y32-32 tone110DB

AC380V

0.007A

White-W

Super bright LED (HL type) products, marine bronze housing products (Brass) and special products voltage (48V, 440V, etc.) can be customized, stainless steel mesh cover (0.35kg)

* Overall installation Fig.

* Wiring

Power cord inlet(CABLE ENTRY)

1.Waterproof connector or a vessel with a stuffing

2.Power cable access port: standard : PF 1/2

3.PF 3/4 inlet size can be customized

Wiring

1.AC power products: positive and negative points do not directly connect the power.

2.DC power supply products: black cable terminal is connected to the negative (-).

3.For a more secure connection, the end of the power cord to use Cold terminals "O" type "U" type

* Precautions when using

1.This product is for outdoor use waterproof, dustproof structure of the product, connect the power cord or any other operation switches job, for disassembly, assembly when the fixing bolts must be tightened each part to ensure the product waterproof, dustproof performance.

2.Power line connecting the inlet with waterproof connector or with explosion-proof joints to ensure that the closure performance. Not closed state of the power cord inlet on the outdoors, due to foreign matter such as dust or moisture intrusion and damage to products

3.Voltage up or down using the ratio of the rated voltage range is too big when it will shorten the life of the product or result in poor product operation and other issues. Please ensure voltage range within the rated voltage of ± 5%.

4.Lampshade or surface of the body, the contact with corrosive chemicals can damage the product when the product cause deformation or discoloration and other problems, the user should pay special attention.

5.Do not give strong impact, which will become part of the damage or disconnection of reasons, do not put the product on the exposed wires stretched mandatory. This is one of the causes of product failure.

* Long bright lights / flashing selection

For the convenience of users, there is a mounting plate Steady / Flashing selection switch. I want to read the instructions carefully and refer to the product structure of the operation in the correct way.

1.Lampshade (Protection Cage) separation: the fixed shade retaining ring (protection network) bolts (M4 screw 4EA) Unscrew isolated shade retaining ring (protection network) and shade, confirmed the long bright LED circuit board / Flashing selection switch. (As shown below)

2.Steady / Flashing selection switch action:

a). Using Steady / Flashing selection switch, select the desired action  b). L switch when the position steady. Flashes when the LF position.

* Model Options

TLH1L    -

Y32   -

220   -

R

 - P

model

Timbre

Voltage

Colour

Protection grille

TLH1L(LED Long bright)

BZ1(Continuous tone)

12-DC12V

RED-R

No specification (None) without protection network products

TLH1LF(LED Brilliant)

BZ2(Staccato)

24-DC24V

YELLOW-A

TLH1LR(LED Rotating light)

Y32-32 TONE（110DB)

110-AC110V

GREEN-G

 - P Specifies (Order) with protective mesh.

TLH1LS(LED Strobe)

220-AC220V

BLUE-B

TLH1HL(LED Super bright)

380-AC380V

White-W
