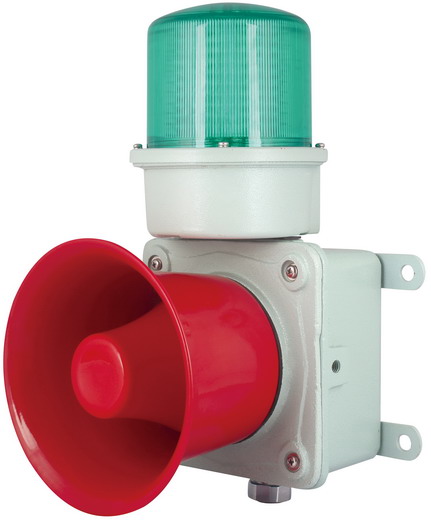

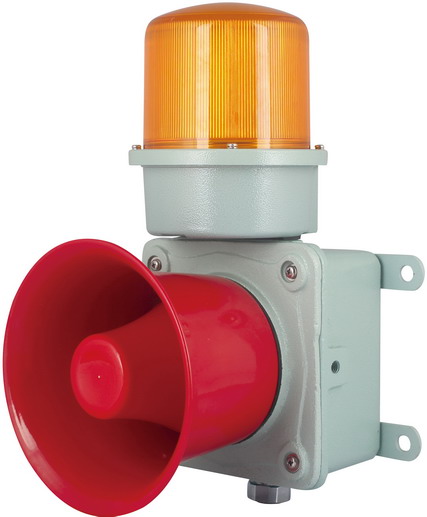

TLNMDL-P Heavy-duty, high-power, marine sound and light alarm, industrial integration of sound and light alarms, sirens, horns, Audible signal devices

Die-cast aluminum alloy casing / durablE

LED bright light-emitting audible Max: 123DB

* Product Features

1.Rugged durable industrial use, convenient and simple heavy-duty, marine products, wall-mounted

2.Using the latest technology independent design, the LED Steady / Flashing warning lights, lights and speaker combination constitute heavy-duty sound and light products

3.Aluminum base, sturdy and durable, waterproof and resistant to corrosion.

4.Products fitted with internal tone selector switch and volume control, the user can adjust the tone and volume of the corresponding size according to demand, detailed selection method in the table below

5.Multiple alarm tones to choose from. (WS-12 kinds of alarm tone) (WM-20 kinds of music + warning tone) (WV-10 kinds of voice recording)

6.Suitable for a variety of crane, driving, forklifts, cranes, cranes, transport equipment, ports, shipbuilding, machinery, iron and steel industry site, petrochemical, mining industry, outdoor equipment, marine industry, transportation and warehousing, etc.

7.Color shade:    RED-R   YELLOW-Y    GREEN-G     BLUE-B

8.volume: Max.123dB/m                 LIGHT Shiny times: 60-80/mim

9.Material: Lens-PC, Body - die-cast aluminum, Speaker shell-metal

10.Protection class: IP56

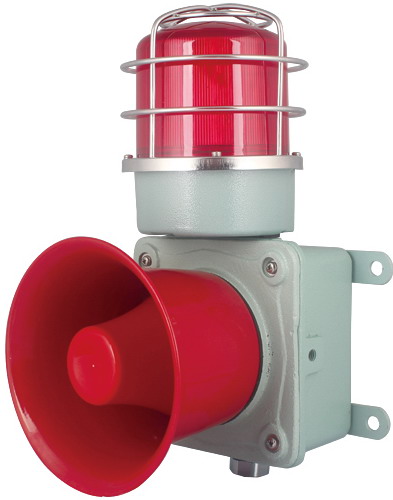

11.This product according to customer demand for the installation of a protective cover, standard product does not contain the protective cover

12.Pictures of the product installation waterproof connectors, installation ships stuffing products can be customized

13.Remote control, light control, infrared control, power sound and light alarm sound and light alarm with batteries, and other special requirements of voice prompts can be customized

*Product Specifications

model

Built-in sound

voltage

current

weight

volume

color

TLNMDL-P

WS-warning note 12

DC12V

 1.305A

5.29Kg

123dB

RED-R

WP-12 special warning sound

DC24V

 1.095A

123dB

YELLOW-Y

WM-music 20 note

AC110V

 0.372A

5.98Kg

118dB

GREEN-G

WA-alarm 20 note

AC220V

 0.181A

116dB

BLUE-B

WV-voice channel 10

AC380V

 0.123A

118dB

WHITE-W

Super bright LED (HL type) products, marine bronze housing products (Brass) and special products voltage (48V, 440V, etc.) can be customized

* Overall installation Fig.

Connection method

1. The AC power supply products: no points are negative, connect the power supply directly.

2. DC DC power supply products: black wire terminals connected to the negative (-).

3. In order to more secure connection, the power cord end use cold terminals "O" type "U" type

Customized products (type - LC) leads to the power cord and signal lines.

1. Draw out the power cord specification: UL1015 - NO18 2 c (0.75 sq) x 400 mm

2. Lead to signal wire specifications: UL1007 - NO. 22 (0.3 sq) 400 mm

*Selection and wiring tones

1. The products within the 12 species and 20 kinds of alarm music selection, standard product (using internal selection Voice selector switch) can take advantage of the type of tone selection switch (left) to select the tone

Standard form: - using internal switches

Optional form (LC): - use of external contact control

2. The method of using an external contact wiring selection tone is customized based products (-LC), refer to the type of items selected from the left sound.

The method of adjusting the size of the volume

1. This product has a volume control circuit board inside the device (left). Regulator in the clockwise direction of rotation, the volume increases, rotating counterclockwise direction to reduce the volume.

* Long bright lights / flashing selection

For the convenience of users, there is a mounting plate Steady / Flashing selection switch. I want to read the instructions carefully and refer to the product structure of the operation in the correct way.

1.Shade (protection network) separation: the fixed shade retaining ring (protection network) bolts (M4 screw 4EA) Unscrew isolated shade retaining ring (protection network) and shade, confirmed the long bright LED circuit board / Flashing switch. (As shown below)

2.Steady / Flashing selection switch action:

a). Using Steady / Flashing selection switch, select the desired action

b). L switch when the position steady. c). flashes when the LF position.

* Model Options

TLNMDL    -

WS   -

220   -

R

 - P

 - LC

model

Voice Category

Voltage

color

Protective

Sound choice

TLNMDL (LED Long bright)

WS-warning note 12

12-DC12V

R(RED)

specification (None) without protection network products

No specification (None) internal selector switch

TLNMDLF (LED Brilliant)

WP-12 special warning sound

24-DC24V

G(GREEN)

TLNMDLR (LED Rotating light)

WM-music 20 note

110-AC110V

Y(YELLOW)

 -PSpecifies (Order) with protective mesh.R63

LC designated (Oder) External contact control

TLNMDLS (LED Strobe)

WA-alarm 20 note

220-AC220V

B(BLUE)

TLNMDHL (LED Super bright)

WV-voice channel 10

380-AC380V

W(WHITE)
